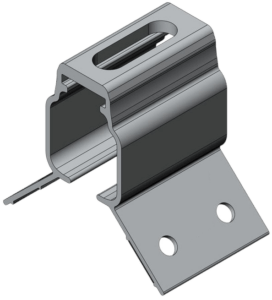

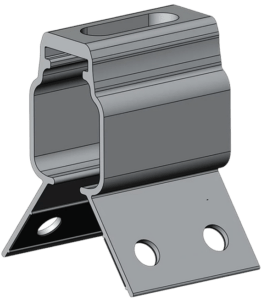

The RibBracket I, II, IV, and V is designed for use with the PVKIT® in rail-free solar mounting systems. Available in five sizes, it offers an economical, sheeting-only attachment that can be installed anywhere along the roof ribs.

Because it is not tied to the building substructure, it allows flexible module placement across the entire roof. It also supports mounting for microinverters and other module-level electronics.

Its angled design converts wind uplift into shear force, delivering strong pull-out resistance. A slotted top hole allows easy alignment and spacing adjustments, while the 4” air gap improves airflow for cooling and simplifies installation. Integrated wire management keeps the system clean and organized.

Every building is engineered to handle solar panel loads with confidence, ensuring secure integration and lasting structural integrity.

Designed for popular Hawaiian profiles, such as HPM Custom 4-Rib, HPMCustom 6-Rib, and similarly-dimensioned narrow ribs.

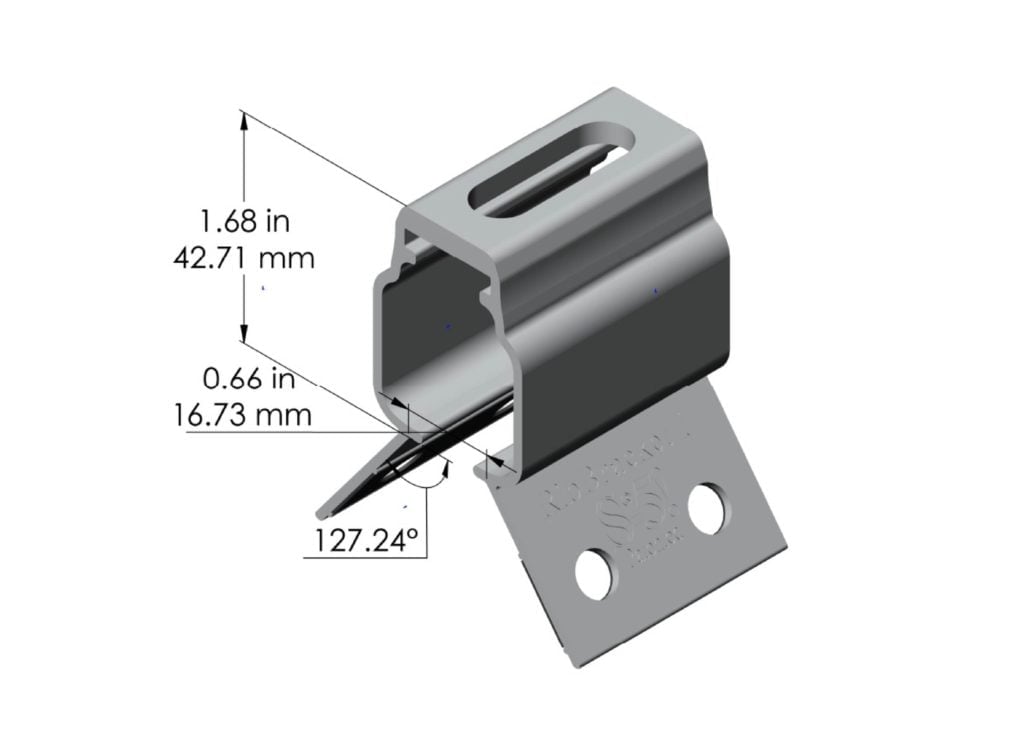

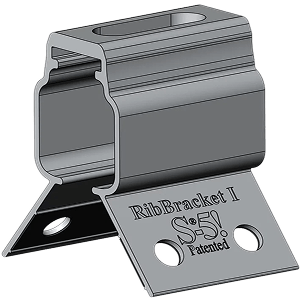

Compatible RibBracket I top rib dimension range:
.63 in +/- to 1 in +/- (16 mm to 25 mm)

• Rail-Less Simplicity- Designed for use with the PVKIT® to create a clean, low-profile, rail-less mounting system.
• Flexible Placement- Mount anywhere along roof ribs—no need to align with structural members.
• Engineered for Wind Resistance – Angled design converts wind uplift into shear force for industry-leading holding strength.
• Adjustable for Easy Alignment – Slotted top hole allows lateral adjustability, making it easy to square up your array.
• Optimized Cooling & Access – Provides 4” (100 mm) of clearance above the roof for airflow and easy wire access.
• Integrated Wire Management – Built-in channel above the rib keeps cables organized and protected.
• Easy, Secure Installation
  • Flex-to-fit legs conform to a variety of rib profiles
  • EPDM sealing washer for reliable weatherproofing
  • 4 stainless-capped, self-piercing screws (included)
  • 1 M8 nut included for securing the PVKIT®

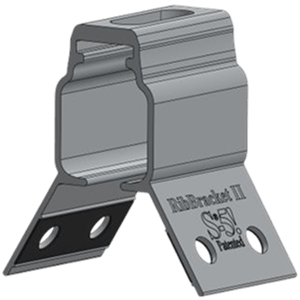

Designed for popular African and Australian profiles, such as Lysaght Trimdek® 1015, Safintra Trimflute 1015, and similarly-dimensioned profiles.

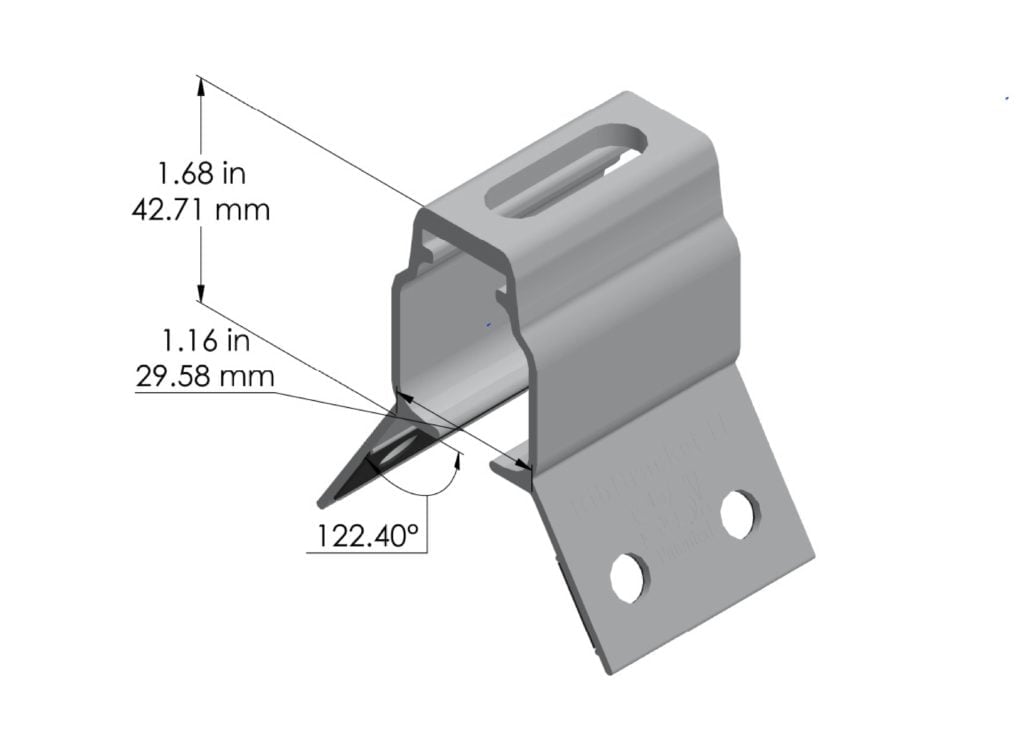

Compatible RibBracket II top rib dimension range:
1 in +/- to 1 1/4 in +/- (25 mm to 32 mm)

• Rail-Less Simplicity- Designed for use with the PVKIT® to create a clean, low-profile, rail-less mounting system.
• Flexible Placement- Mount anywhere along roof ribs—no need to align with structural members.
• Engineered for Wind Resistance – Angled design converts wind uplift into shear force for industry-leading holding strength.
• Adjustable for Easy Alignment – Slotted top hole allows lateral adjustability, making it easy to square up your array.
• Optimized Cooling & Access – Provides 4” (100 mm) of clearance above the roof for airflow and easy wire access.
• Integrated Wire Management – Built-in channel above the rib keeps cables organized and protected.
• Easy, Secure Installation
  • Flex-to-fit legs conform to a variety of rib profiles
  • EPDM sealing washer for reliable weatherproofing
  • 4 stainless-capped, self-piercing screws (included)
  • 1 M8 nut included for securing the PVKIT®

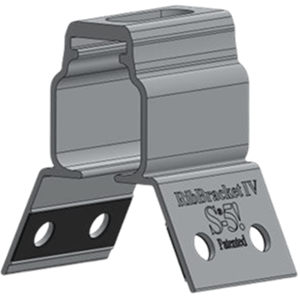

Designed for popular African and North American profiles, such as Safintra IBR, KingSpan® KS1000, and similarly-dimensioned profiles.

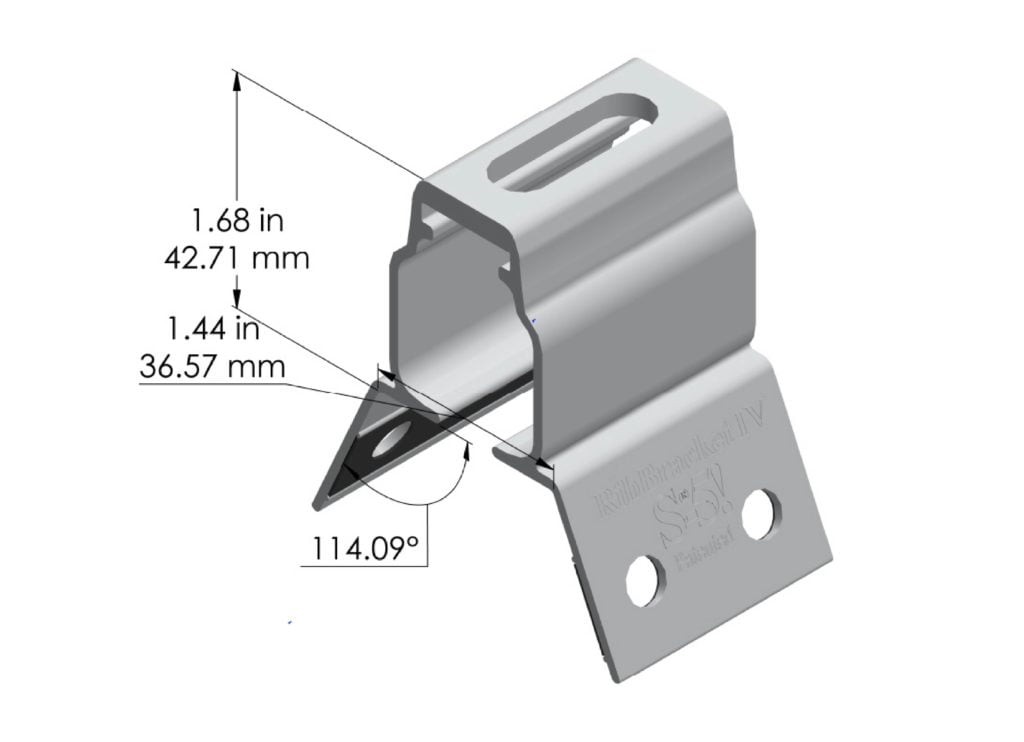

Compatible RibBracket IV top rib dimension range:
1 ¼ in +/- to 1 ⅜ in (32 mm to 35 mm)

• Rail-Less Simplicity- Designed for use with the PVKIT® to create a clean, low-profile, rail-less mounting system.
• Flexible Placement- Mount anywhere along roof ribs—no need to align with structural members.
• Engineered for Wind Resistance – Angled design converts wind uplift into shear force for industry-leading holding strength.
• Adjustable for Easy Alignment – Slotted top hole allows lateral adjustability, making it easy to square up your array.
• Optimized Cooling & Access – Provides 4” (100 mm) of clearance above the roof for airflow and easy wire access.
• Integrated Wire Management – Built-in channel above the rib keeps cables organized and protected.
• Easy, Secure Installation
  • Flex-to-fit legs conform to a variety of rib profiles
  • EPDM sealing washer for reliable weatherproofing
  • 4 stainless-capped, self-piercing screws (included)
  • 1 M8 nut included for securing the PVKIT®

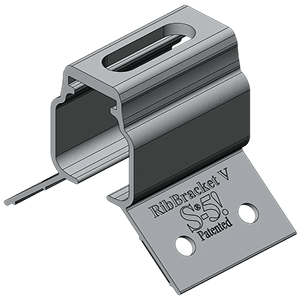

Designed for Ternium TR and similarly-dimensioned profiles.

Compatible RibBracket V top rib dimension range:

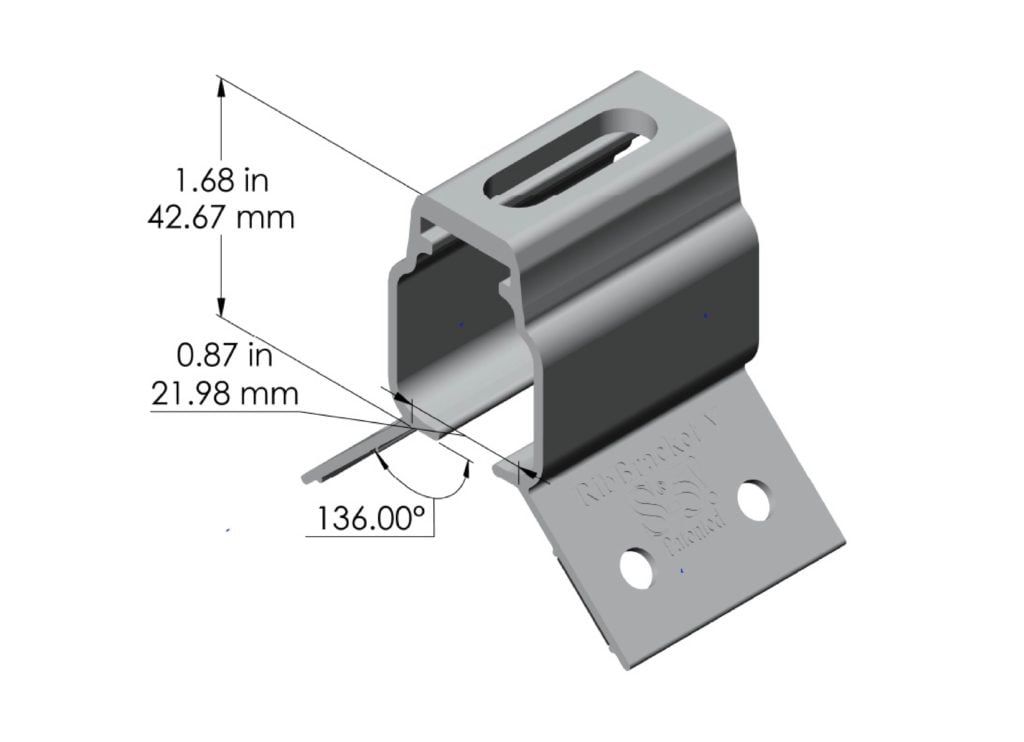

.75 in +/- to 1 in +/- (19 mm to 25 mm)

• Rail-Less Simplicity- Designed for use with the PVKIT® to create a clean, low-profile, rail-less mounting system.
• Flexible Placement- Mount anywhere along roof ribs—no need to align with structural members.
• Engineered for Wind Resistance – Angled design converts wind uplift into shear force for industry-leading holding strength.
• Adjustable for Easy Alignment – Slotted top hole allows lateral adjustability, making it easy to square up your array.
• Optimized Cooling & Access – Provides 4” (100 mm) of clearance above the roof for airflow and easy wire access.
• Integrated Wire Management – Built-in channel above the rib keeps cables organized and protected.
• Easy, Secure Installation
  • Flex-to-fit legs conform to a variety of rib profiles
  • EPDM sealing washer for reliable weatherproofing
  • 4 stainless-capped, self-piercing screws (included)
  • 1 M8 nut included for securing the PVKIT®

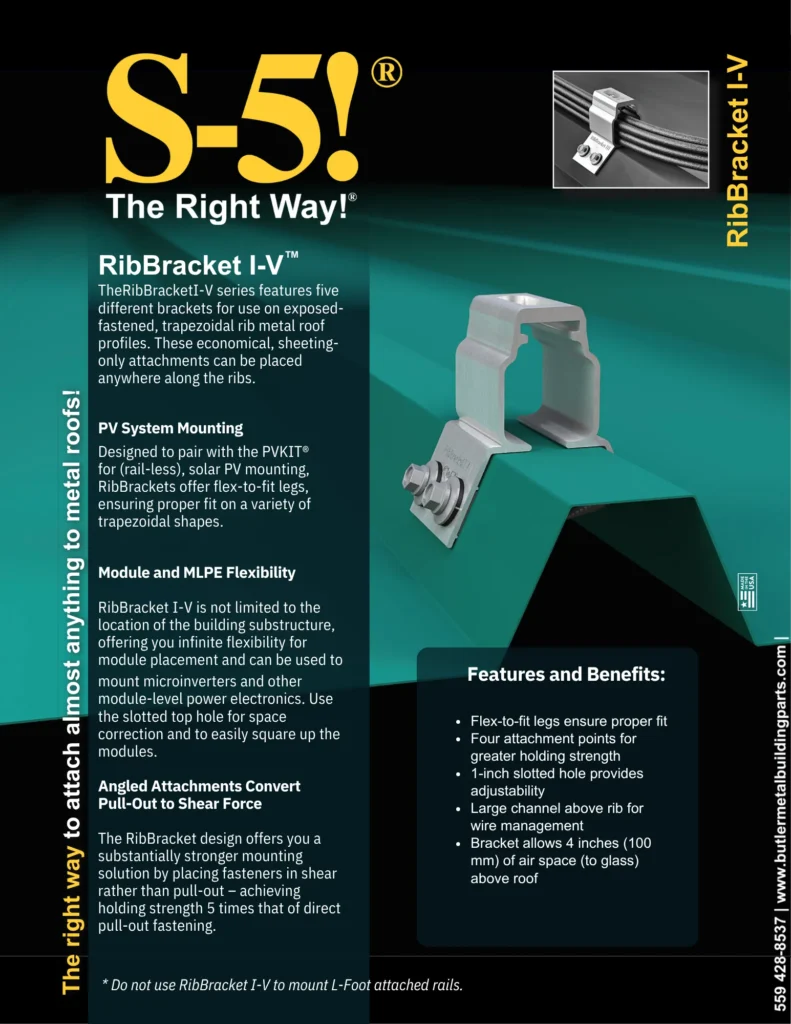

• Flex-to-fit legs ensure proper fit
• Large channel above rib can be used for wire management
• Sheeting-only attachment can be placed anywhere along roof ribs
• Stainless-capped, self-piercing screws specifically designed to maximize holding strength & prevent swarf
• EPDM sealing washer
• Bracket allows for 4” (100 mm) of air space above rib
• 4 self-piercing screws and 1 M8 nut included
