BUTLER BUILDING WALK DOORS
The Right Door for Every Butler Building Application
Butler personnel doors are designed to integrate seamlessly with Butler building wall systems — no costly field modifications, no guesswork. Whether you need a heavy-duty industrial entry, a reliable standard commercial door, or a professional storefront entrance, Butler has a man door solution built to perform. Available in three series — the heavy-duty Series 700, the versatile Series 500, and the professional Storefront Door — each one is manufactured to Butler's exacting standards and backed by a limited lifetime warranty.
Beautiful Strength in Every Detail
From heavy industrial facilities to professional storefronts, Butler personnel doors deliver superior weather resistance, structural integrity, and long-term value. In stock and available to ship factory-direct to your jobsite in just a few days.
What we offer
Series 700 Steel Doors
3′-0″ x 7′-0
4′-0″ x 7′-0
6′-0″ x 7′-0
Butler Series 700 Steel Doors
Series 500 Steel Doors
3′-0″ x 7′-0
4′-0″ x 7′-0
6′-0″ x 7′-0
Butler Series 500 Steel Doors
Storefront Doors
3′-0″ x 7′-0
4′-0″ x 7′-0
6′-0″ x 7′-0
Storefront Doors
Series 700 — Heavy Duty Industrial Grade Man Door
The Series 700 Door is comprised of the highest quality components in conjunction with a proprietary anchoring system.
When security, durability, and heavy daily use are non-negotiable, the Butler Series 700 is your door. Built with heavy-gauge galvanized steel and a reinforced frame, the Series 700 is engineered for warehouses, manufacturing plants, distribution centers, and any high-traffic industrial environment. This is the toughest man door in the Butler lineup — period.
Download Spec SheetSeries 700 Commercial Door Standard Features
Doors
18 gauge galvanized (A60), polyurethane, “R11”, insulated core, interlocking seam. Doors meet commercial Steel Door Institute (SDI) standards.
Frames
Welded frame. 16 gauge galvanized (A60), 5 3/4″ standard frame profile, interlocking mitered-corner connection (then welded). Frames meet commercial Steel Door Institute (SDI) standards.
Locks
SCHLAGE Grade 2, AL53PD-626-SAT. Meets ANSI A156.2 series 4000, grade 2 requirements. Three-year warranty. Thru bolted for added strength. Free wheeling vandal resistant lever.
Subjambs
Proprietary offset subjamb/jamb anchor system. 16 gauge galvanized (A40 minimum) subjamb. Polyethylene block anchors stiffen jambs and allow for offset design. Self trimming, no jamb trim required.
Paint Finish
All doors and frame have a baked-on beige primer coat meeting ANSI A250 standards. Paint test for salt spray, humidity, and adhesion.
Hinges
Ball bearing silver powder coat hinges with security non-removable pins.
Other
Full 5 3/4″ aluminum threshold, dual finger TPE sweep, and urethane foam weatherseal for kerfless type application. All components meet commercial standards and ADA requirements. Doors are stacked on wood skid, connected through the subjambs, or with separation between for doors without subjambs. Doors are enclosed in OSB for protection during shipping.
Series 700 Options
SCHLAGE Grade 1 Lever Lock
SCHLAGE D53PD grade 1 entrance lock. Vandal-resistant free-wheeling levers. Independent heavy-duty spring cages for lever support. Thru bolted for positive interlock to door. Tested to 3,000,000 cycles. Five-year warranty.
SCHLAGE Mortise Lever Lock
SCHLAGE heavy-duty grade 1 mortise lever lockset with escutcheon plate. 3/4″ latch throw and 1″ deadbolt throw. Five-year warranty.
Von Duprin/ Falcon Exit Device
Various heavy-duty grade 1 rim exit devices from Von Duprin (Series 22 and 99) and Monarch (18 Series). Various finish and trim options. Three-year warranty.
LCN Auto Closer
Grade 1 surface-applied closer. Backcheck, seep and latch speed adjustment valves. LCN 1261 (moderate duty); LCN 1461 (moderate-to-heavy-duty); and LCN 4040XP (extra-heavy-duty). Ten-year warranty.
Latch Guard
Steel latch guard with chrome finish. Prevents tampering with the latch on lever locks.
Series 700 Lite Kits
24 x 30
9 x 30

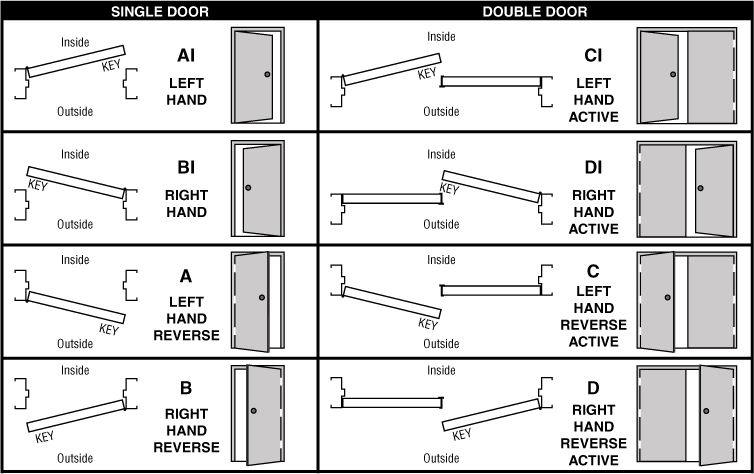

Swing Chart
Double Doors with one active door and one inactive door have “Z” Astragal on inactive door standard.
Above noted “Interior door” will have threshold and weather-strip unless specified something different.
Above noted “Exterior door” will have spreader bar with bumper threshold (shipped loose), drip sweep, concealed sweep, stick on weather-strip and aluminum weather-strip.

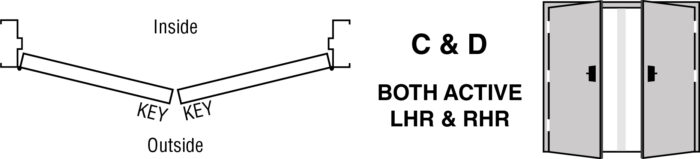

Double Door C & D Both Active with Mullion: Standard with (2) exit device with lever exterior lock trim or optional exit only (no exterior lock trim).
Series 500 — Reliable Commercial Grade Man Door
Our Series 500 Door is made of the best quality components, meeting commercial standards at a value-oriented price.
The Butler Series 500 delivers solid commercial-grade performance at an accessible price point — making it the smart choice when you need dependable quality without overspending. Prehung and factory-assembled for fast installation, the Series 500 is built to Butler standards and integrates perfectly with all Butler wall systems. Make no sacrifice on quality. Get the Series 500.
Download Spec SheetSeries 500 Standard Features
Doors
18 gauge galvanized (A40), polyurethane core, square edge. flush-mounted top channel. Doors meet commercial Steel Door Institute (SDI) Standards.
Frames
16 gauge galvanized (A40), 5 3/4″ frame depth with 2″ x 2″ header and 4″ x 1 3/4″ subframe header. Frames meet commercial Steel Door Institute (SDI) standards.
Locks
Falcon Grade 2 W511-626-Dane. Thru bolted for strength. Free wheeling vandal resistant lever. Ten-year warranty.
Subjambs
16 gauge subjambs replace the need for a framed opening. Full 7’2″ in height and can be modified to fit various wall conditions. 12 gauge adjustable clips to attach to the girt and floor.
Paint Finish
All doors and frames are baked-on primer paint, meeting ANSI A250 Standards. Tested for salt spray, humidity, abrasion, and adhesion.
Hinges
Ball bearing silver powder coated hinges with security non-removable pins.
Other
Full 5 3/4″ aluminum threshold, dual finger TPE sweep, and urethane weatherstrip for kerfless type application. All components meet commercial standards and ADA requirements.
Warranty
The Series 500 is covered by a six-year warranty on the door leaf and frame, guaranteeing the product to be free of defects in materials and workmanship (certain hardware components have longer warranties).
Series 500 Options
Grade 1 Lever Lock
Falcon Grade 1, T-511-626-Dane, heavy-duty. Thru bolted for strength. Free-wheeling vandal-resistant lever. Ten-year warranty.
Mortise Lever Lock
Heavy-duty grade 1 mortise lever lockset with escutcheon plate. 3/4″ latch throw and 1″ deadbolt throw. Ten-year warranty.
Exit Device
Heavy-duty grade 1 rim exit device. Aluminum finish. Key-in-lever or escutcheon-with-lever trim. Ten-year warranty.
Auto Closer
Heavy-duty grade 1 surface-applied closer. Backcheck, seep and latch speed adjustment valves. Ten-year warranty.
Latch Guard
Steel latch guard with chrome finish. Prevents tampering with the latch on lever locks.
Series 700 Lite Kits
24 x 30
9 x 30
Swing Chart
Double Doors with one active door and one inactive door have “Z” Astragal on inactive door standard.
Above noted “Interior door” will have threshold and weather-strip unless specified something different.
Above noted “Exterior door” will have spreader bar with bumper threshold (shipped loose), drip sweep, concealed sweep, stick on weather-strip and aluminum weather-strip.
Double Door C & D Both Active with Mullion: Standard with (2) exit device with lever exterior lock trim or optional exit only (no exterior lock trim).

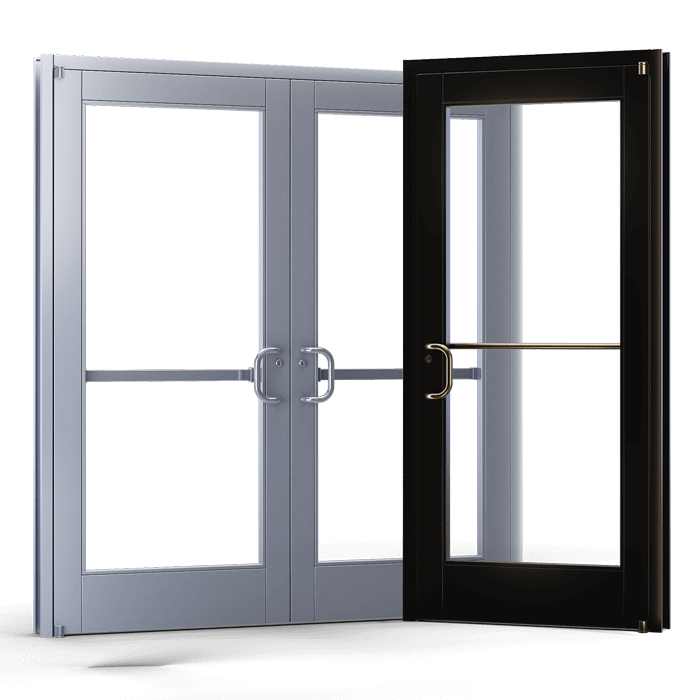

Storefront Door — Professional Curb Appeal Meets Commercial Strength
Our Aluminum Storefront Entrance Doors are yet another innovative, attractive opening for your new building. These attractive entrance doors tell your clients and tenants that you care about security as well as cleanliness and order.
Butler's Storefront Door is built for businesses that demand a professional entrance without sacrificing commercial-grade durability. Featuring a heavy-duty aluminum frame with tempered glass panels, the Storefront Door creates a clean, modern entry that elevates any Butler building — from retail storefronts to office fronts and showrooms. ADA-compliant configurations available.
Download Spec SheetStorefront Features
Threshold
Adjustable, ADA, ½” High, Attached Threshold.
Top & Bottom Manual Flush-Bolts
Applied to the leaf opposite the leaf with the lock-set. Standard ANSI 6 3/4″ x 1″. Finish to match the door and frame finish.
Aluminum Sweep
Adjustable, Surface-Mounted Aluminum Sweep.
Hinges (Optional)
Standard Weight 4″ X 4 ½” Ball-Bearing NRP Hinges
1 ½ pair on single doors, 3 pair on door pairs.
Closer
Surface Parallel-Arm Closer.
Panic Bar (Optional)
3700 Rim Panic Bar.
Deadlock
Heavy-Duty, High-Security Hookbolt Deadlock.
Thumb turn inside and keyway outside.
Top & Bottom Pivots (Standard)
Top And Bottom Pivots
(Butt hinges are available upon request.) Applied to both leaves of door pairs.
Weatherstrip
Felt Weatherstrip.
Standard Push/Pull Bars
Included on each leaf of door pairs. Finish to match the door and frame finish.
Standard Finishes
Clear Anodized
Dark Bronze Anodized
Black
Bone White
Hartford Green
Specification Table
Technical Specifications
| Specification | Series 700 | Series 500 | Storefront |
|---|---|---|---|
| Construction | Heavy-gauge steel | Commercial steel | Aluminum frame |
| Standard Size | 3'0" x 7'0" | 3'0" x 7'0" | Custom |
| Custom Sizes | ✅ Available | ✅ Available | ✅ Available |
| Glass Option | ❌ | Optional lite | ✅ Standard |
| Locking | Multi-point | Keyed entry | Commercial hardware |
| Weatherstripping | ✅ 4-sided | ✅ 4-sided | ✅ 4-sided |
| ADA Compliant | ✅ Available | ✅ Available | ✅ Available |
| Thermal Break | ✅ Yes | Standard | ✅ Insulated glass |
| Finish | Butler-Cote™ | Butler-Cote™ | Custom anodized |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime |
In Stock and Ready to Ship
Butler personnel doors are in stock and available for fast turnaround delivery. Orders are processed and shipped factory-direct to your jobsite — so you get genuine OEM Butler quality exactly when you need it. Whether you're ordering a single replacement door or outfitting an entire facility, we have you covered with dependable availability and authorized wholesale pricing.
