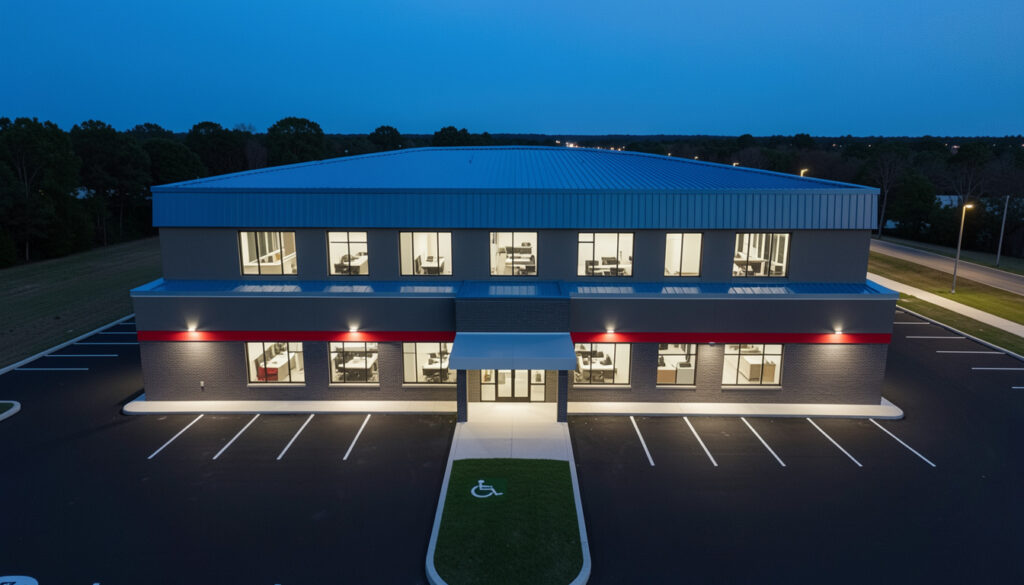

The CMR-24 metal roof is a Butler roof system designed for commercial and industrial metal buildings. Like other Butler roofing systems, it forms part of a complete building envelope that includes structural framing, insulation, flashing, fasteners, and other components.
For owners of existing Butler buildings, understanding the CMR-24 system can make it easier to identify the correct replacement parts when the roof develops leaks, experiences storm damage, or requires maintenance.
Roof panels are only one part of the system. Seams, clips, fasteners, insulation, sealants, flashing, and penetrations all contribute to the roof’s overall performance.
When repairing or replacing a CMR-24 roof, identifying the exact roof system is therefore an important first step.
Key Takeaways
- CMR-24 is a Butler metal roof system designed for commercial and industrial applications.
- The roof should be evaluated as a complete assembly rather than as individual panels.
- Proper panel attachment is important for structural performance and weather resistance.
- Thermal movement should be considered when repairing or modifying the roof.
- Roof penetrations are common sources of leaks and should be carefully detailed.
- Damaged panels, seams, flashing, and sealants should be inspected together.
- Replacement parts should be matched to the existing CMR-24 system.
- Roof insulation and vapor-control components can affect overall roof performance.
- Regular inspections can identify problems before they develop into larger repairs.
- Accurate building information and photographs can help identify replacement components.
What Is a CMR-24 Metal Roof?
The CMR-24 is a Butler metal roofing system used on Butler building structures.
Its purpose is to provide a durable exterior roof covering while working with the building’s structural and thermal systems.
As with any metal building roof, the completed assembly has several interconnected components.
These can include:
- Roof panels
- Panel attachments
- Structural framing
- Insulation
- Vapor retarders
- Flashing
- Closures
- Sealants
- Roof penetrations
- Gutters and drainage components
A problem with one component can sometimes affect another.
Why Identifying the Roof System Matters
Butler has produced multiple roof systems over the years.
These include:
- Butlerib II
- MR-24
- VSR II
- CMR-24
These systems are not automatically interchangeable.
Panel dimensions, seams, attachment methods, clips, fasteners, and accessories can differ between systems.
Before ordering replacement parts, confirm that the building actually has a CMR-24 roof.

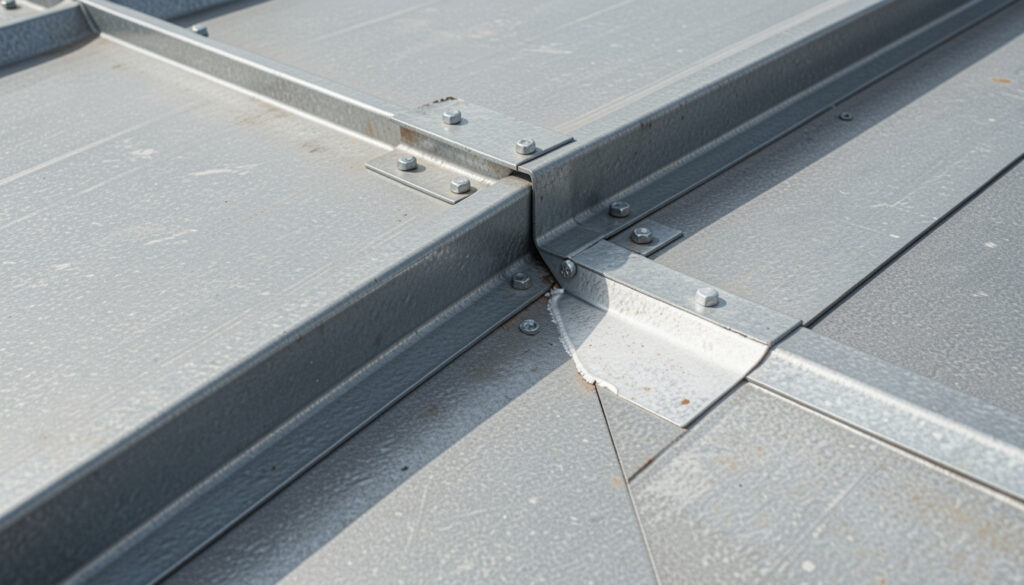

CMR-24 Roof Panels
The roof panels form the primary exterior surface of the roofing system.
They protect the building interior from:
- Rain
- Wind
- Snow
- Solar exposure
- Debris
- Other environmental conditions
Over time, panels can experience corrosion, impact damage, coating deterioration, or deformation.
A damaged panel should be evaluated to determine whether repair or replacement is appropriate.
Roof Panel Damage
Metal roof panels can become damaged by:
- Severe weather
- Falling debris
- Maintenance equipment
- Improper foot traffic
- Corrosion
- Previous modifications
- Mechanical impact
Damage can range from small coating defects to significant deformation or perforation.
Minor surface damage may require a different repair strategy than a structurally compromised panel.
Corrosion on CMR-24 Roofs
Corrosion is one of the most common concerns with aging metal roofing.
It can develop when the protective coating is damaged or when moisture remains against the metal.
Potential contributing factors include:
- Scratches
- Exposed metal
- Standing water
- Failed sealants
- Debris accumulation
- Chemical exposure
- Dissimilar metals
The severity and location of corrosion should be documented during a roof inspection.
Roof Coatings
The roof’s protective finish helps protect the underlying metal from environmental exposure.
A damaged coating can expose the substrate to moisture.
Surface deterioration should therefore be addressed before corrosion progresses.
However, applying a coating over significant corrosion or structural damage does not necessarily resolve the underlying problem.
CMR-24 Roof Leaks
A metal roof leak does not always originate directly above the visible water stain.
Water can travel along roof components before entering the building.
Common leak sources include:
- Roof penetrations
- Flashing
- Seams
- Fasteners
- End conditions
- Transitions
- Damaged panels
- Failed sealants
The source should be traced rather than assuming that the nearest roof panel is responsible.
Roof Penetrations
Commercial metal buildings often contain penetrations for:
- HVAC equipment
- Exhaust systems
- Pipes
- Electrical equipment
- Vents
- Skylights
- Mechanical systems
Each penetration creates a transition between the roof surface and another component.
Poorly maintained flashing or sealants around these areas can create leak paths.
Flashing Around Penetrations
Flashing directs water away from openings and transitions.
Over time, flashing can become:
- Damaged
- Corroded
- Loose
- Distorted
- Poorly sealed
When a leak occurs around a penetration, inspect both the flashing and surrounding roof assembly.
Roof Sealants
Sealants are used in numerous locations throughout metal building roof systems.
They can deteriorate because of:
- UV exposure
- Temperature changes
- Aging
- Movement
- Poor adhesion
- Physical damage
Failed sealant should be evaluated and replaced with a compatible product where required.
Thermal Movement
Metal roofing expands and contracts as temperatures change.
The movement can be significant across long roof panels.
The roof attachment system must account for this movement.
Repairs or modifications that unnecessarily restrict the designed movement of the roof can introduce stress into the panels or connections.
Roof Attachment Components
The attachment system transfers loads from the roof panels into the building structure.
Depending on the CMR-24 configuration, attachment components may include clips, fasteners, structural connections, and other hardware.
The correct components depend on the original roof design.
This is why replacement parts should be identified from the actual roof system rather than selected based only on visual similarity.
Wind and Roof Attachments
Wind can create uplift forces on a metal roof.
The roof attachment system needs to transfer these forces into the supporting structure.
The required attachment configuration depends on the building’s engineering and site-specific conditions.
A damaged roof following a major storm should therefore be inspected beyond the visibly damaged panels.
CMR-24 Roof Insulation
Roof insulation forms another important part of the building envelope.
It helps reduce heat transfer and can contribute to condensation control.
The insulation system can include:
- Fiberglass insulation
- Vapor retarders
- Support systems
- Air-control components
If existing insulation becomes wet or damaged, the moisture source should be corrected before replacement insulation is installed.
Condensation Control
Condensation can occur when warm, humid interior air contacts sufficiently cold surfaces.
Metal roofs can become cold under certain conditions.
The combination of insulation, vapor control, air sealing, and appropriate building ventilation can help manage condensation risk.
Insulation alone does not eliminate every potential condensation problem.
Roof Insulation During Repairs
When repairing a CMR-24 roof, inspect insulation near areas affected by:
- Leaks
- Condensation
- Roof penetrations
- Panel replacement
- Structural modifications
Wet insulation may require replacement depending on its condition.
The surrounding vapor-control system should also be evaluated.
CMR-24 Roof Replacement
A full roof replacement is a much larger project than replacing individual damaged components.
It can involve:
- Removing existing panels
- Evaluating structural framing
- Replacing insulation
- Updating vapor control
- Installing new roof panels
- Replacing flashing
- Installing new attachment components
- Sealing penetrations
The appropriate scope depends on the condition and design of the existing building.
Partial Roof Replacement
Not every damaged roof requires complete replacement.
If damage is localized, it may be possible to replace affected components while retaining sound portions of the existing roof.
However, compatibility between old and new components must be considered.
The age and condition of the surrounding roof should also influence the repair decision.
CMR-24 Roof Maintenance
Regular inspection can help extend the useful service life of a metal roof.
Inspect the roof for:
- Corrosion
- Damaged panels
- Failed sealants
- Loose components
- Damaged flashing
- Debris
- Standing water
- Problematic penetrations
Interior inspections are also useful because water stains can reveal developing exterior problems.
Keeping the Roof Clean
Leaves, dirt, branches, and other debris can accumulate around roof penetrations, gutters, and drainage areas.
Debris can retain moisture and contribute to corrosion.
Keeping drainage pathways clear is therefore an important part of basic roof maintenance.
Gutters and Drainage
Roof drainage components work alongside the roof panels to move water away from the building.
Blocked gutters or downspouts can cause water to accumulate near the roof edge.
This can contribute to:
- Overflow
- Staining
- Corrosion
- Soffit damage
- Wall moisture
Drainage should be evaluated when investigating roof-edge problems.
Roof Modifications
Existing Butler buildings are frequently modified to accommodate new equipment or changing building requirements.
Potential modifications include:
- HVAC equipment
- Solar panels
- Exhaust systems
- Electrical conduits
- Skylights
- Additional penetrations
Every modification should account for the existing CMR-24 roof assembly.
Poorly planned modifications can create new leak paths.
Solar Panels on Metal Roofs
Solar installations require careful consideration of the existing roof system.
The attachment method needs to be compatible with the roof profile and capable of handling the applicable loads.
Where possible, mounting systems that avoid unnecessary roof penetrations can help preserve the roof’s weather-resistant surface.
The roof’s remaining service life should also be considered before installing a large solar array.
Roof Age and Replacement Decisions
The age of the roof is one factor in determining whether to repair or replace it.
Other factors include:
- Extent of corrosion
- Number of leaks
- Panel condition
- Structural condition
- Insulation performance
- Previous repairs
- Remaining service life
A relatively old roof with isolated damage may still be repairable.
Conversely, a newer roof with widespread damage may require significant restoration.
CMR-24 Roof Inspection
A thorough inspection should consider both exterior and interior conditions.
Exterior inspection can identify:
- Panel damage
- Corrosion
- Sealant deterioration
- Flashing problems
- Drainage issues
Interior inspection can identify:
- Water stains
- Wet insulation
- Condensation
- Corrosion on structural components
Together, these observations provide a better picture of the roof’s condition.
Common Problems With CMR-24 Metal Roofs
Roof Leaks
Leaks can originate from damaged panels, flashing, penetrations, seams, sealants, or other roof components.
Corrosion
Long-term moisture exposure can cause corrosion when protective coatings are compromised.
Failed Sealants
Aging sealants can crack, shrink, or lose adhesion.
Damaged Flashing
Flashing around penetrations and transitions can deteriorate or become damaged.
Panel Damage
Impact, severe weather, or maintenance activity can deform or puncture panels.
Standing Water
Poor drainage can leave water on the roof and accelerate deterioration.
Loose Components
Damaged or deteriorated attachment components can affect roof performance.
Wet Insulation
Roof leaks or condensation can saturate insulation and reduce its effectiveness.
Blocked Drainage
Debris can obstruct gutters and drainage pathways.
Improper Modifications
Uncontrolled penetrations or attachments can introduce new leak paths.
Things to Know
- CMR-24 is a Butler metal roofing system designed for commercial and industrial buildings.
- The roof should be evaluated as a complete assembly.
- Roof panels, attachment components, flashing, sealants, insulation, and drainage all contribute to roof performance.
- Roof leaks can originate from locations other than the point where water appears inside the building.
- Thermal movement should be considered when repairing or modifying metal roof panels.
- Roof penetrations require appropriate flashing and weather sealing.
- Wet insulation should be evaluated rather than simply covered.
- Blocked drainage can contribute to roof-edge and corrosion problems.
- Replacement parts should be matched to the actual CMR-24 system.
- A roof inspection should consider both exterior and interior conditions.
- Roof modifications should account for the existing roof design and remaining service life.
- Accurate photographs, measurements, and building information can help identify replacement components.
Frequently Asked Questions
Q: What is a CMR-24 metal roof?
CMR-24 is a Butler metal roofing system used on Butler commercial and industrial buildings.
Q: How do I know if my building has a CMR-24 roof?
The roof profile, seams, attachment configuration, building documentation, and existing components can help identify the system.
Photographs and measurements can also assist with identification.
Q: What causes CMR-24 roof leaks?
Common sources include damaged panels, flashing, roof penetrations, failed sealants, seams, drainage problems, and deteriorated roof components.
Q: Can a CMR-24 roof be repaired instead of replaced?
Yes, depending on the extent and location of the damage.
Localized damage may be repairable when the surrounding roof remains in good condition.
Q: How long does a CMR-24 roof last?
Service life depends on the original installation, environment, maintenance, corrosion exposure, weather conditions, and other factors.
The physical condition of the roof is more useful for repair decisions than age alone.
Q: Can I replace only one damaged CMR-24 roof panel?
Depending on the roof configuration and damage, localized panel replacement may be possible.
The surrounding attachment and weatherproofing components should also be inspected.
Q: Does roof insulation matter on a CMR-24 building?
Yes.
Insulation helps reduce heat transfer and can contribute to condensation control as part of the complete building envelope.
Q: What should I do if my CMR-24 roof insulation is wet?
First identify and correct the source of moisture.
The insulation and surrounding vapor-control components should then be evaluated to determine whether replacement is necessary.
Q: Can I install solar panels on a CMR-24 roof?
Solar installation may be possible, but the mounting method must be compatible with the specific roof system and project requirements.
The roof’s condition and remaining service life should also be considered.
Q: Should I replace the roof if there are several leaks?
Not necessarily.
The number, location, severity, and cause of the leaks should be evaluated along with the condition of the roof panels, structure, insulation, and flashing.
Q: Why is my metal roof developing corrosion?
Corrosion can develop when protective coatings are damaged and the underlying metal is exposed to moisture or other corrosive conditions.
The source of the exposure should be identified.
Q: What information do I need to order CMR-24 replacement parts?
Provide your building information, roof system, panel measurements, photographs, and details about the damaged component.
This information can help determine the appropriate replacement part.
The Bottom Line on CMR-24 Metal Roofs
A CMR-24 metal roof should be treated as an integrated building system rather than simply a collection of metal panels. The roof panels, attachment components, flashing, sealants, insulation, drainage, and penetrations all contribute to its performance.
When a Butler building develops a leak or roof damage, identifying the actual roof system and underlying cause should come before ordering replacement parts. A properly matched component can address the immediate repair while maintaining compatibility with the existing building.
If you need CMR-24 roof panels, replacement components, fasteners, flashing, insulation, or other Butler building parts, Request a Quote and provide your building information, measurements, photographs, and project requirements.
