Thermawall Fluted IMP: An Insulated Metal Wall Panel Built for Performance and Design

Thermawall Fluted IMP is a factory-insulated metal wall panel system designed for commercial, industrial, and architectural buildings that need both thermal performance and a durable finished exterior.

Unlike conventional metal wall systems that install insulation separately from the exterior cladding, an insulated metal panel combines the primary wall components into one factory-engineered system. Thermawall Fluted uses an insulated core between metal faces while adding a pronounced fluted exterior profile for a stronger architectural and industrial appearance.

The result is a wall system that combines insulation, exterior cladding, interior finish, weather protection, and concealed fastening into a coordinated panel assembly.

Key Takeaways

• Thermawall Fluted IMP combines metal exterior and interior faces with a factory-installed insulation core.
• The fluted exterior profile creates strong vertical shadow lines across the building facade.
• The panel system is designed for commercial, industrial, and architectural applications.
• Thermawall panels are available in 2-, 2½-, 3-, and 4-inch thicknesses.
• Published R-values range from approximately R-14 to R-32, depending on panel thickness.
• The panels are 42 inches wide.
• Concealed fastening creates a cleaner exterior appearance than exposed-fastener wall panels.
• Interlocking panel joints help create a continuous wall assembly.
• The system incorporates a thermal-break joint design.
• Factory-applied joint sealant contributes to weather resistance.
• The interior side provides a finished metal surface.
• Butler-Cote finish options provide architectural color and coating choices.
• Thermawall assemblies can achieve 1- or 2-hour fire-resistance ratings depending on configuration.
• The Thermawall system is identified as FM Global approved.
• Replacement panels should be matched carefully to the existing wall system before ordering.

What Is a Thermawall Fluted IMP?

A Thermawall Fluted IMP is an insulated metal panel designed to serve as a complete exterior wall system.

The panel incorporates:

Exterior metal face → insulated core → interior metal face

The exterior face provides the building’s finished appearance and weather-facing surface. The insulation core provides thermal resistance, while the interior metal face creates a finished surface on the inside of the building.

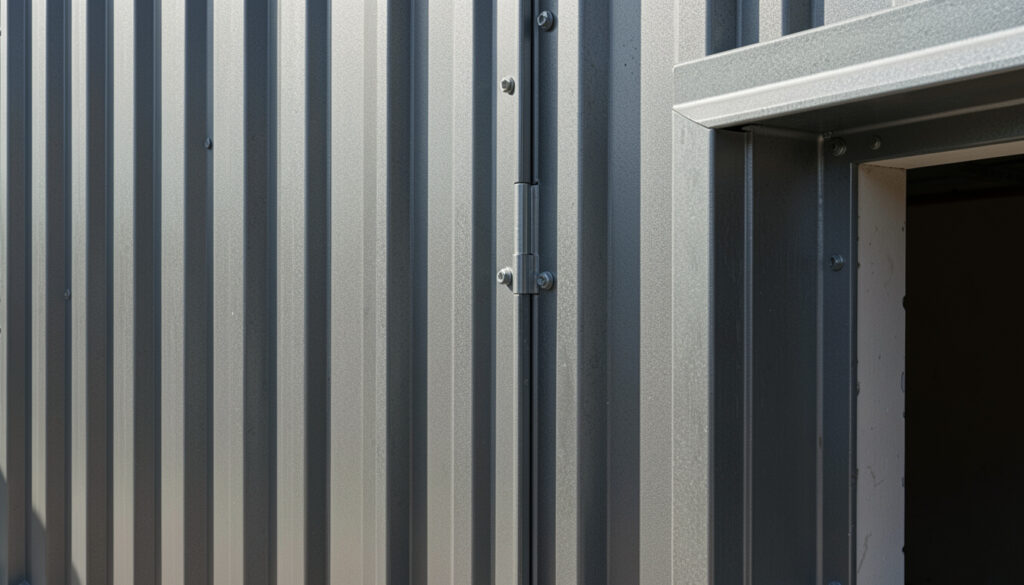

The defining feature of the Fluted version is its pronounced vertical exterior profile.

Instead of a completely flat surface, the panel contains repeated vertical grooves that create depth and shadow across the facade.

This gives the building a stronger visual character than a flat IMP while maintaining the performance advantages of an insulated panel system.

What Makes the Fluted Profile Different?

The exterior profile is one of the most important differences between the Thermawall Fluted panel and other Thermawall options.

A Flat IMP provides a relatively smooth surface.

A Fineline IMP uses shallower grooves for a more subtle architectural appearance.

The Fluted IMP creates deeper, more noticeable vertical lines.

This makes the Fluted profile particularly appropriate when the building needs a more pronounced metal-building aesthetic without using a conventional exposed-fastener ribbed wall.

The vertical profile can also help break up large wall elevations.

Instead of presenting one large uninterrupted surface, the grooves create a repeating architectural pattern that changes appearance depending on the angle and intensity of sunlight.

Fluted vs. Fineline vs. Flat Thermawall

The three profiles serve different architectural preferences while sharing the broader characteristics of the Thermawall system.

The best choice depends largely on the desired appearance of the building, although the project must also meet structural, thermal, fire, and enclosure requirements.

Integrated Insulation

A major advantage of an IMP system is that insulation is incorporated directly into the panel.

Thermawall uses a factory-installed poured-in-place foam insulation core.

The available panel thicknesses include:

• 2 inches
• 2½ inches
• 3 inches
• 4 inches

Published R-values range from approximately R-14 to R-32, depending on panel thickness.

These published values describe the panel’s insulation performance. Actual whole-wall performance depends on the complete wall assembly, including framing, joints, penetrations, openings, and installation quality.

For projects with specific energy-code requirements, the entire wall assembly should be evaluated rather than relying solely on the panel’s nominal R-value.

Why Use an Insulated Metal Panel?

Traditional metal building walls can require several separate components.

A typical assembly might include exterior metal panels, insulation, vapor-control materials, interior liners, fasteners, and sealants.

An IMP combines many of these functions into one factory-engineered product.

This can simplify:

• Material handling
• Installation
• Jobsite coordination
• Wall assembly sequencing
• Insulation installation
• Exterior panel installation

The insulation is also installed in a controlled factory environment rather than being fitted into the wall entirely in the field.

That consistency can be valuable when the project requires predictable panel dimensions and insulation placement.

Thermal Break Joint Design

The joints between insulated panels are an important part of the building envelope.

Thermawall incorporates a thermal-break joint design to improve thermal continuity between adjacent panels.

This is important because heat can bypass insulation through highly conductive materials or poorly detailed connections.

A properly designed joint helps reduce these thermal interruptions.

However, the performance of the completed wall still depends on correct installation and detailing around:

• Panel joints
• Corners
• Openings
• Roof connections
• Base conditions
• Penetrations
• Structural interfaces

Tongue-and-Groove Panel Joints

Thermawall panels use interlocking joints to connect adjacent panels.

The tongue-and-groove configuration helps establish alignment while creating continuity across the wall.

This is particularly important for insulated metal panels because the joint must perform multiple functions.

It needs to:

• Connect the panels
• Maintain alignment
• Support weather resistance
• Limit air movement
• Maintain insulation continuity
• Accommodate appropriate installation tolerances

Damaged or improperly seated joints can compromise the intended performance of the wall.

Concealed Fasteners

Thermawall Fluted IMPs use concealed fastening.

This is a significant difference from conventional exposed-fastener metal wall systems.

With exposed-fastener panels, rows of screws remain visible across the exterior facade.

With concealed fastening, the attachment system is integrated into the panel assembly so that the exterior face remains visually uninterrupted.

This allows the fluted profile to become the dominant visual element of the building.

For commercial buildings, that can produce a more finished architectural appearance.

Factory-Applied Joint Sealant

Thermawall incorporates factory-applied joint sealant as part of its panel joint system.

The sealant works with the interlocking panel connection to contribute to weather protection.

Factory application can provide greater consistency during manufacturing, but field installation still plays an important role.

Special attention should be given to areas where the panel system meets other building components.

These include:

• Windows
• Doors
• Corners
• Roof transitions
• Wall bases
• Mechanical penetrations
• Utility penetrations
• Structural interfaces

42-Inch Panel Width

Thermawall panels are 42 inches wide.

This panel width can help reduce the number of vertical joints required across a large wall elevation.

For architectural projects, fewer joints can contribute to a more consistent appearance.

Panel width also needs to be coordinated with the building’s structural grid and openings.

Before ordering panels, contractors should verify the layout around:

• Door openings
• Window openings
• Building corners
• Wall intersections
• Trim
• Structural framing
• Panel terminations

Proper layout can reduce unnecessary field cutting.

Interior Metal Face

Thermawall Fluted panels also provide a finished interior metal surface.

The interior face is described as a virtually flat polyester-white finish.

This provides a clean and durable interior surface in applications where an exposed metal liner is appropriate.

For industrial buildings, warehouses, manufacturing facilities, and other utilitarian spaces, this can eliminate the need for a separate interior finish system.

It also provides a surface that can be easier to clean and maintain than some conventional interior wall materials.

Butler-Cote Finish Options

The exterior face can be finished with Butler-Cote coating technology.

Butler-Cote uses high-performance fluoropolymer coating technology based on Kynar 500 or Hylar 5000 resin systems.

The coating is designed to resist environmental exposure, including fading and chalking.

Color selection can also help coordinate the Fluted IMP with:

• Butler metal roofs
• Trim
• Doors
• Storefront systems
• Architectural accents
• Adjacent materials

For a commercial building, the finish is more than a cosmetic decision. It contributes to the building’s long-term exterior appearance.

Commercial Building Applications

Thermawall Fluted IMPs can be used where a project needs a combination of thermal performance and a pronounced architectural exterior.

Potential applications include:

• Commercial buildings
• Retail facilities
• Office buildings
• Distribution centers
• Manufacturing facilities
• Industrial campuses
• Institutional buildings
• Corporate facilities
• Service facilities

The fluted appearance can provide more visual definition than a flat panel while maintaining the clean look of a concealed-fastener system.

Industrial Building Applications

Industrial facilities often prioritize durability, thermal performance, and installation efficiency.

Thermawall Fluted can address these requirements through its integrated panel construction.

The fluted exterior also provides a recognizable industrial appearance without relying on rows of exposed screws.

Inside the building, the finished metal face provides a practical surface for facilities where durability and maintenance are important.

Temperature-Controlled Facilities

Insulated metal panels are particularly relevant to buildings where maintaining interior temperature is important.

The integrated insulation core provides thermal resistance throughout the panel, while the panel joints are designed to form part of the overall building enclosure.

Potential applications include:

• Temperature-controlled warehouses
• Food processing facilities
• Refrigerated buildings
• Manufacturing plants
• Specialty storage facilities

Temperature-controlled applications require careful consideration of the entire enclosure.

Important details include:

• Vapor control
• Air sealing
• Panel joints
• Door systems
• Floor-to-wall transitions
• Roof connections
• Mechanical penetrations

The panel’s R-value is only one part of the building’s thermal performance.

Architectural Appearance

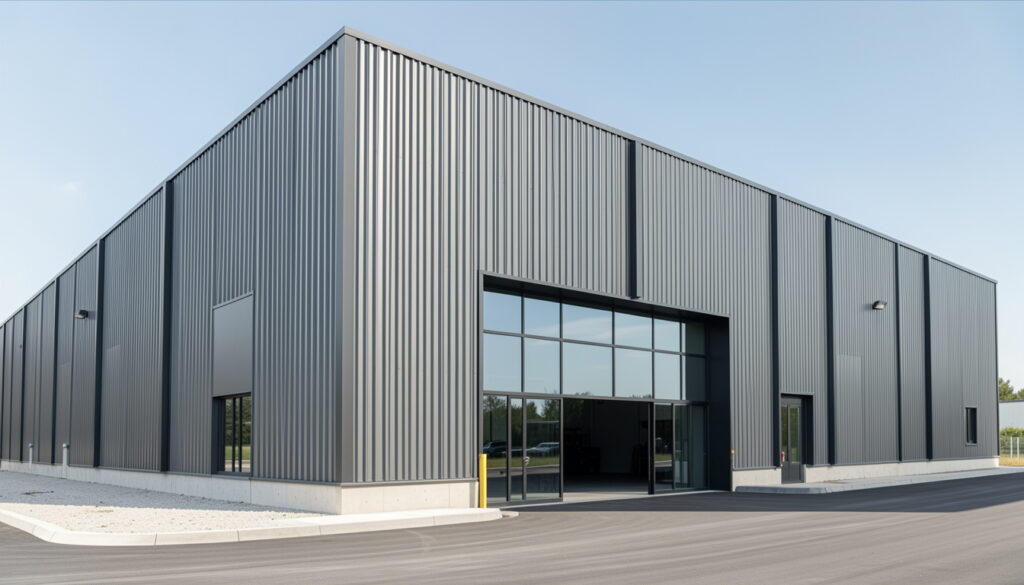

The Fluted profile can be particularly effective on large wall elevations.

The vertical grooves create a repeating pattern that can visually reduce the scale of a large facade.

The appearance also changes with sunlight.

When the sun strikes the wall from different directions, the grooves create different levels of light and shadow.

This can produce a more dynamic exterior than a completely flat wall panel.

For commercial architecture, this allows the metal building system to serve as both an enclosure and a visible architectural element.

Installation Efficiency

Thermawall Fluted is designed to simplify wall construction by combining several components into a single panel.

The panel arrives with its insulation already incorporated.

Installation is performed from the exterior side of the building, which can help separate exterior enclosure work from interior construction.

The manufacturer’s product information indicates that installation uses a clip and two fasteners at each structural connection.

Actual installation time will depend on:

• Building size
• Panel length
• Structural framing
• Number of openings
• Site conditions
• Weather
• Crew experience
• Equipment availability

Exterior Installation

Installing the panels from the exterior can provide an advantage during construction.

Interior trades can continue working inside the building without requiring access to the inside face of every wall panel during installation.

This can help coordinate:

• Electrical work
• Mechanical systems
• Plumbing
• Interior framing
• Equipment installation
• Exterior enclosure

The specific scheduling benefit depends on the overall project sequence.

Replacement Applications

Thermawall Fluted IMPs can also be considered for compatible replacement work.

A replacement panel should not be selected solely based on its visible profile.

The existing wall should be evaluated for:

• Panel thickness
• Panel width
• Flute profile
• Joint configuration
• Insulation requirements
• Structural attachment
• Trim
• Openings
• Exterior finish

Matching the existing system is especially important when replacing only a small number of panels within an otherwise intact wall.

Replacing Damaged Fluted IMP Panels

Damage can occur for many reasons.

Common causes include:

• Vehicle impact
• Forklift impact
• Severe weather
• Construction activity
• Equipment contact
• Accidental punctures
• Coating damage
• Corrosion

A damaged exterior face does not necessarily mean the entire panel needs to be replaced.

However, damage should be evaluated to determine whether the insulation core, joint, attachment system, or surrounding panels were also affected.

Weather and Moisture Protection

The wall system needs to protect the building from more than temperature changes.

It must also manage:

• Rain
• Wind-driven moisture
• Air infiltration
• Humidity
• Temperature cycling
• UV exposure

Thermawall’s panel joints, sealant, exterior face, and integrated construction work together as part of the building enclosure.

However, the most vulnerable locations are typically transitions and penetrations.

Particular attention should be paid to:

• Windows
• Doors
• Corners
• Roof-to-wall connections
• Wall bases
• Utility penetrations
• Mechanical penetrations

Proper detailing at these locations is essential.

Fire Performance

Fire performance requirements depend on the building’s occupancy and applicable codes.

Thermawall systems can achieve one- or two-hour fire-resistance ratings depending on the specific tested configuration.

A fire rating should never be assumed for every possible Thermawall installation.

The exact assembly, thickness, supporting construction, and applicable listing should be verified for the project.

FM Global Approval

The Thermawall system is identified as FM Global approved.

FM approval can be relevant for certain commercial and industrial projects where property protection and risk-management requirements influence material selection.

The applicable approval should be verified for the exact panel configuration and intended use.

Maintenance of Fluted IMPs

Thermawall Fluted panels generally require routine inspection and cleaning.

Building owners should inspect the wall periodically for:

• Damaged panel faces
• Dents
• Scratches
• Damaged flutes
• Open joints
• Failed sealant
• Corrosion
• Damaged trim
• Water staining
• Impact damage

Early identification of damage can help prevent a relatively small problem from developing into a larger building-envelope issue.

Cleaning procedures should also be compatible with the exterior coating.

Common Problems With Thermawall Fluted IMP

Damaged Fluted Profile

Vehicle or equipment impacts can deform the vertical ribs and affect both appearance and panel performance.

Panel Joint Damage

Damage to the tongue-and-groove connection can affect the continuity of the wall system.

Sealant Failure

Deteriorated or improperly installed sealant can contribute to water or air infiltration.

Coating Damage

Deep scratches and abrasions can damage the protective exterior coating.

Water Intrusion

Improper detailing around openings and penetrations can create paths for moisture.

Incorrect Replacement Panel

A replacement panel with the wrong thickness, width, or joint configuration may not properly integrate with the existing wall.

Thermal Performance Problems

Gaps, damaged insulation, or improperly detailed joints can reduce the effective thermal performance of the wall.

Corrosion

Persistent moisture combined with coating damage can contribute to corrosion of the steel face.

Interior Panel Damage

Forklifts, machinery, and other equipment can damage the interior metal face.

Signs Your Fluted IMP Wall Needs Inspection

Consider having the wall inspected if you notice:

• Dented flutes
• Punctures
• Scratched coating
• Open panel joints
• Failed sealant
• Water stains
• Interior moisture
• Corrosion
• Damaged trim
• Gaps around openings
• Unusual temperature changes inside the building

Damage around panel joints and penetrations deserves particular attention because these areas can affect the performance of the overall wall enclosure.

Things to Know

• Thermawall Fluted IMP is an insulated metal wall panel system for commercial, industrial, and architectural applications.
• The fluted exterior profile creates pronounced vertical shadow lines.
• Thermawall panels are 42 inches wide.
• Available panel thicknesses include 2, 2½, 3, and 4 inches.
• Published R-values range from approximately R-14 to R-32 depending on panel thickness.
• The insulation core is factory installed.
• The system uses concealed fastening.
• Interlocking panel joints connect adjacent panels.
• A thermal-break joint design supports thermal continuity.
• Factory-applied joint sealant contributes to weather resistance.
• The interior face provides a finished metal surface.
• Butler-Cote provides exterior finish and color options.
• Fire-resistance ratings depend on the specific tested assembly.
• The Thermawall system is identified as FM Global approved.
• Replacement panels should be carefully matched to the existing system.

Frequently Asked Questions

Q: What is a Thermawall Fluted IMP?

A Thermawall Fluted IMP is a factory-insulated metal wall panel with a pronounced vertical exterior profile and concealed fastening.

It combines exterior cladding, insulation, and an interior metal face into one engineered wall component.

Q: What makes the Fluted panel different from the Flat panel?

The primary difference is the exterior profile.

The Fluted panel has pronounced vertical grooves, while the Flat panel has a much smoother exterior surface.

Q: What is the difference between Fluted and Fineline Thermawall?

Fluted panels have deeper and more pronounced grooves, while Fineline panels use shallower grooves.

Fluted generally creates a stronger industrial appearance, while Fineline provides a more subtle architectural texture.

Q: How thick are Thermawall Fluted panels?

Thermawall panels are available in 2-, 2½-, 3-, and 4-inch thicknesses.

The appropriate thickness depends on the project’s thermal and design requirements.

Q: What R-value does Thermawall provide?

Published Thermawall R-values range from approximately R-14 to R-32 depending on panel thickness.

Actual whole-wall performance depends on the complete building-envelope assembly.

Q: Are the fasteners visible?

Thermawall uses concealed fastening.

This allows the fluted exterior profile to remain visually clean without rows of exposed screws.

Q: How wide are Thermawall panels?

Thermawall panels are 42 inches wide.

The width should be coordinated with structural framing and building openings during design and installation.

Q: Can Thermawall Fluted IMPs be used for commercial buildings?

Yes.

The system is designed for commercial, industrial, and architectural metal building applications.

Q: Can Fluted IMPs be used for replacement projects?

Yes, when the replacement panel is compatible with the existing system.

The existing profile, thickness, width, joint configuration, framing, trim, and openings should be verified before ordering.

Q: Does Thermawall provide an interior finished surface?

Yes.

The interior side provides a virtually flat finished metal surface, making it suitable for applications where an exposed interior metal finish is acceptable.

Q: Can Thermawall achieve a fire rating?

Certain Thermawall assemblies can achieve one- or two-hour fire-resistance ratings.

The exact rating depends on the tested wall assembly and configuration.

Q: Is Thermawall FM Global approved?

The Thermawall system is identified as FM Global approved.

The specific approval should be verified for the configuration being used.

The Bottom Line on Thermawall Fluted IMP

Thermawall Fluted IMP combines insulated metal panel performance with a pronounced architectural profile.

Its integrated insulation, concealed fastening, fluted exterior, interlocking joints, thermal-break design, factory-applied sealant, and finished interior face make it a practical option for commercial and industrial buildings where both performance and appearance matter.

The fluted profile gives large wall elevations more visual depth than a flat panel while maintaining the clean appearance associated with concealed-fastener construction.

For replacement projects, the most important step is verifying compatibility with the existing building. Panel thickness, width, flute profile, joint configuration, framing, trim, and openings should all be confirmed before ordering.

If you need replacement Thermawall Fluted panels or want to determine the correct panel configuration for your building, Request a Quote and provide your building information, measurements, and photos.
